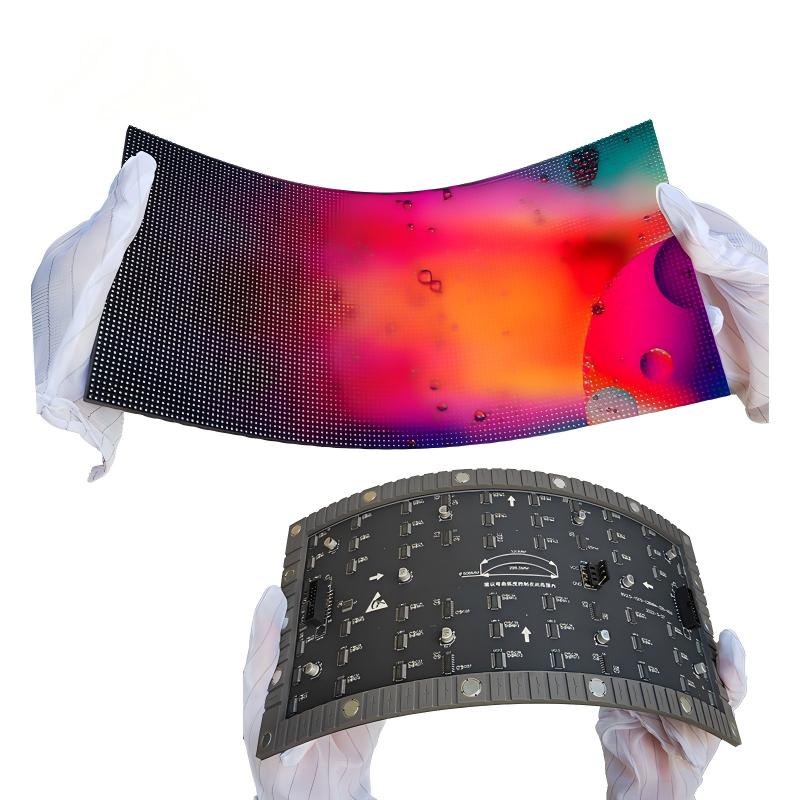

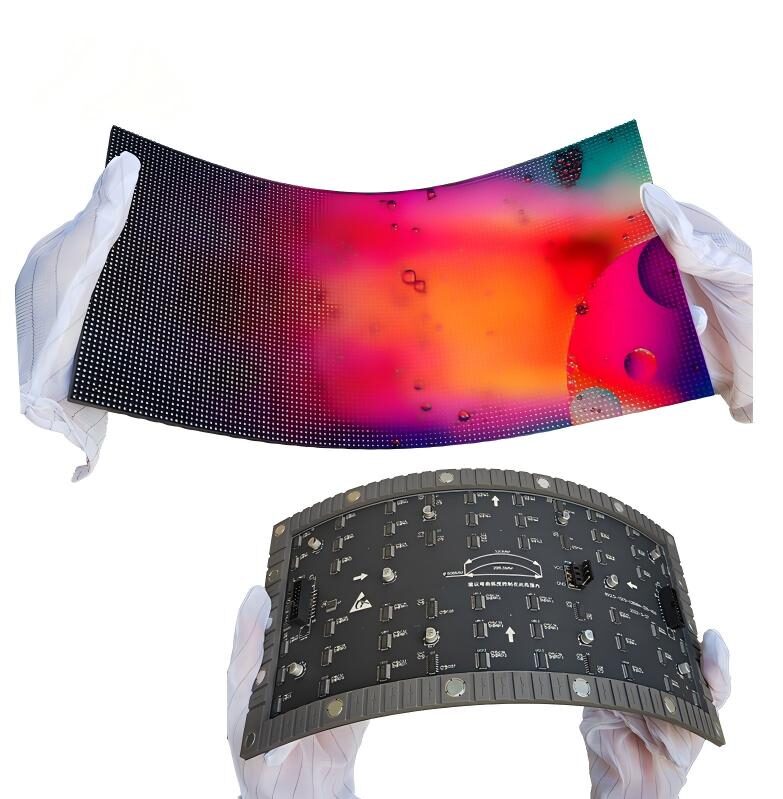

Flexible/Soft Modules
Features:
Max Bend angle: 140°
Size: 240mm*120mm, 320mm*160mm
Pixel Pitch:1.25mm, P1.56mm, P1.67mm, P1.87mm, P2mm, P2.5mm, P3mm, P4mm
Refresh Rate:1920Hz/3840Hz
Shape:Square, Triangle ,Rectangle ,Rround
Brightness:800-1000nits.

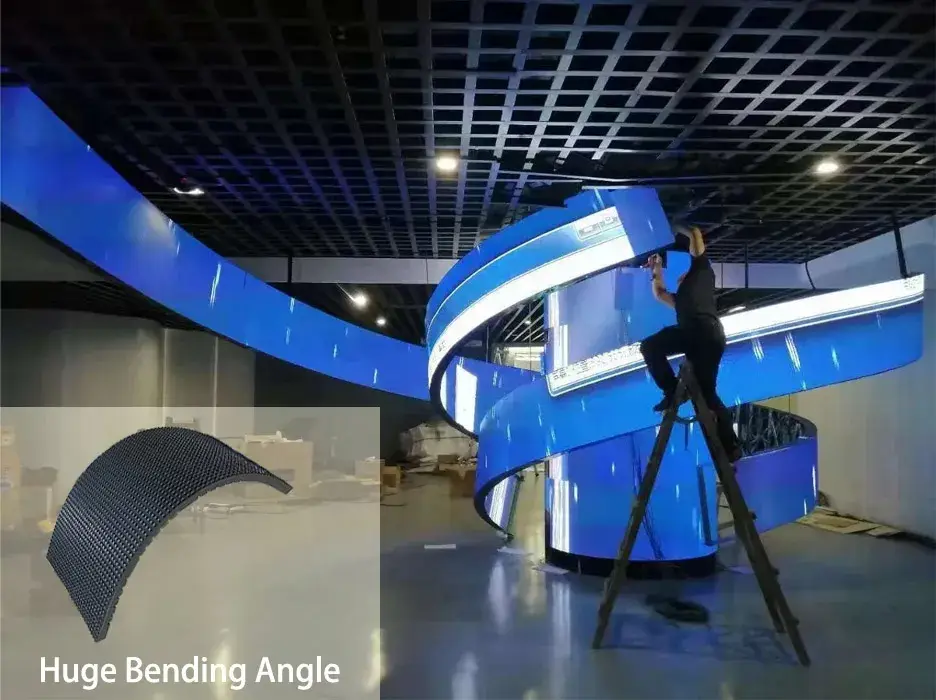

1:Huge Bending Angle

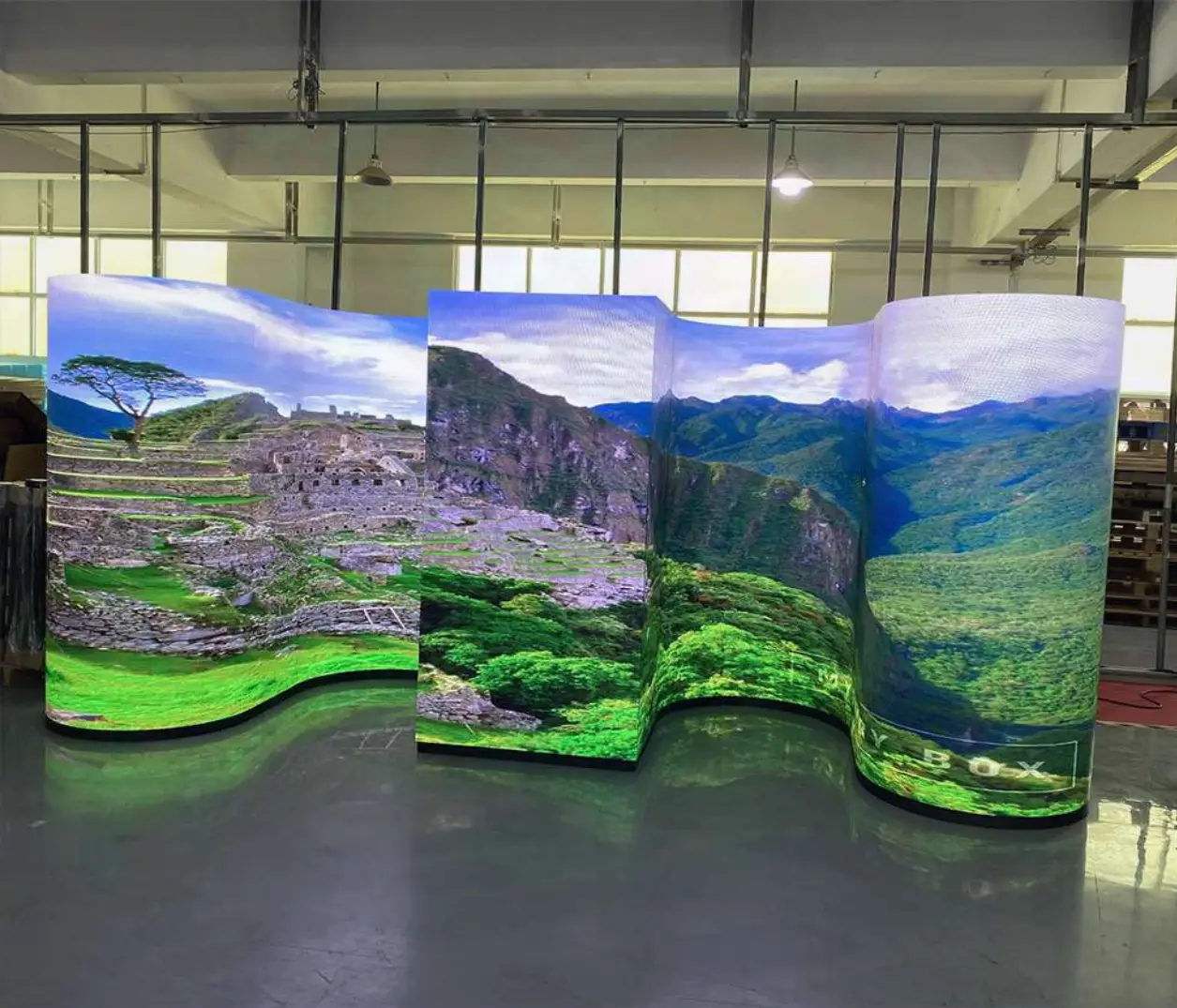

Big Curve angle Concave and Convex, the smallest curve diameter are 764mm for 240*120mm led module, and 815mm for 320*160mm led module. Which makes it possible to form different shapes led display. From Column cylinder led displays, to countless ribbon-like led display
2:Multiple Size and Shape Flexible LED Screen module
Due to different project needs, we have two standard sizes 240mm x 120mm, and 320mm x 160mm with pixel pitch from 1.25mm, 1.56mm,1.67mm, 1.87mm, 2mm, 2.5mm, 3mm and 4mm for various applications. We also made different shape flexible modules to customize different shapes.
3:Seamless Splicing With 3840Hz-7680Hz refresh rate
4:High Contrast rate with 99.5% Rec709 gamut
Top quality black lamp able to make the contrast ratio more than 5000:1, With 99.5% rec709 color space coverage, which gives the LED display an unbeatable and vivid visual effect
1:Huge Bending Angle
Big Curve angle Concave and Convex, the smallest curve diameter are 764mm for 240*120mm led module, and 815mm for 320*160mm led module. Which makes it possible to form different shapes led display. From Column cylinder led displays, to countless ribbon-like led display
| Module No. | Pixel density (dot/㎡) | Resolution | Size | Scan mode | IC chip QTY | Refresh Rate | SMD Chip | Brightness(cd/㎡) |
| P1.25 | 640000 | 192*96 | 240*120mm | 1/48 | 72 | 3000-3840Hz | SMD1010 | 600-700cd |
| P1.5625 | 409600 | 128*96 | 200*150mm | 1/48 | 48 | 3000-3840Hz | SMD1212 | 700-900cd |
| P1.579 | 401111 | 152*76 | 240*120mm | 1/38 | 60 | 3000-3840Hz | SMD1212 | 700-900cd |
| P1.667 | 360000 | 144*72 | 240*120mm | 1/36 | 54 | 3000-3840Hz | SMD1212 | 700-900cd |
| P1.875 | 284444 | 128*64 | 240*120mm | 1/32 | 48 | 3000-3840Hz | SMD1212 | 700-900cd |
| P1.875 | 284444 | 128*64 | 240*120mm | 1/32 | 48 | 3000-3840hz | SMD1515 | 700-900cd |
| P2 | 250000 | 120*60 | 240*120mm | 1/30 | 48 | 3000-3840hz | SMD1515 | 700-900cd |
| P2 | 250000 | 120*60 | 240*120mm | 1/30 | 48 | 3000-3840hz | SMD1515 | 500-600cd |
| P2.5 | 160000 | 96*48 | 240*120mm | 1/24 | 36 | 1920hz | SMD1515 | 700-900cd |
| P3 | 111111 | 80*40 | 240*120mm | 1/20 | 30 | 1920hz | SMD2121 | 700-900cd |
| P4 | 62500 | 60*30 | 240*120mm | 1/15 | 24 | 1920hz | SMD2121 | 700-900cd |
| Module No. | Pixel density (dot/㎡) | Resolution | Size | Scan mode | IC chip QTY | Refresh Rate | SMD chip | Brightness(cd/㎡) |
| P1.86 | 288906 | 172*86 | 320*160mm | 1/43 | 66 | 3000-3840hz | SMD1515 | 700-900cd |
| P2 | 250000 | 160*80 | 320*160mm | 1/40 | 60 | 3000-3840hz | SMD1515 | 700-900cd |
| P2.5 | 160000 | 128*64 | 320*160mm | 1/32 | 48 | 1920hz | SMD1515 | 700-900cd |
| P2.5-Q | 160000 | 128*64 | 320*160mm | 1/32 | 48 | 1920hz | SMD1515 | 500-600cd |
| P3 | 105625 | 104*52 | 320*160mm | 1/26 | 42 | 1920hz | SMD1515 | 700-900cd |
| P3-Q | 105625 | 104*52 | 320*160mm | 1/26 | 42 | 1920hz | SMD1515 | 500-600cd |
| P4 | 62500 | 80*40 | 320*160mm | 1/20 | 30 | 1920hz | SMD2121 | 700-900cd |
| Module No. | Angle | Pixel density (dot/㎡) | Resolution | Size | Scan mode | IC chip QTY | Refresh Rate | SMD chip | Brightness(cd/㎡) |
| P2.5 | 45°Triangle | 160000 | 96*48 | 240*120mm | 1/24 | 36 | 1920hz | SMD1515 | 700-900cd |
| P3 | 45°Triangle | 111111 | 80*40 | 240*120mm | 1/20 | 30 | 1920hz | SMD2121 | 700-900cd |
Product Spec Sheet
FAQ of Flexible LED Display
What's flexible led display？
A flexible LED screen is a led screen that the frame or the module is flexible. Normally the modules of the screen are connected with Hinge, Chain, Soft Material, or Soft PCB, etc, So that the screen can be flexible among the modules. Flexible Led Screen is also called bendable Led Screen.
What's the lead time of the flexible led display?
It depends, if it is a total customized job which we need to redesign the led boards and tooling,then it might need to take around 45-60days, while if it is a normal projects, then takes around 30days. If you just order ordinary led module which we have stock, then it is only 7days.
What certificates do you have?
Our product has CE-LVD, CE-EMC, and CE-Rohs, FCC, PSE. We use top electrical components suppliers, hence it is also easy to make other certificates as your country request.
What warranty do you offer?
For most of our products, We offer a standard 2-year warranty with unlimited online after service.
